- --Test the waterproof performance of the watch up to 6 atmospheres by applying pressure to the sealed cylinder, which can simulate the underwater state of tens of meters

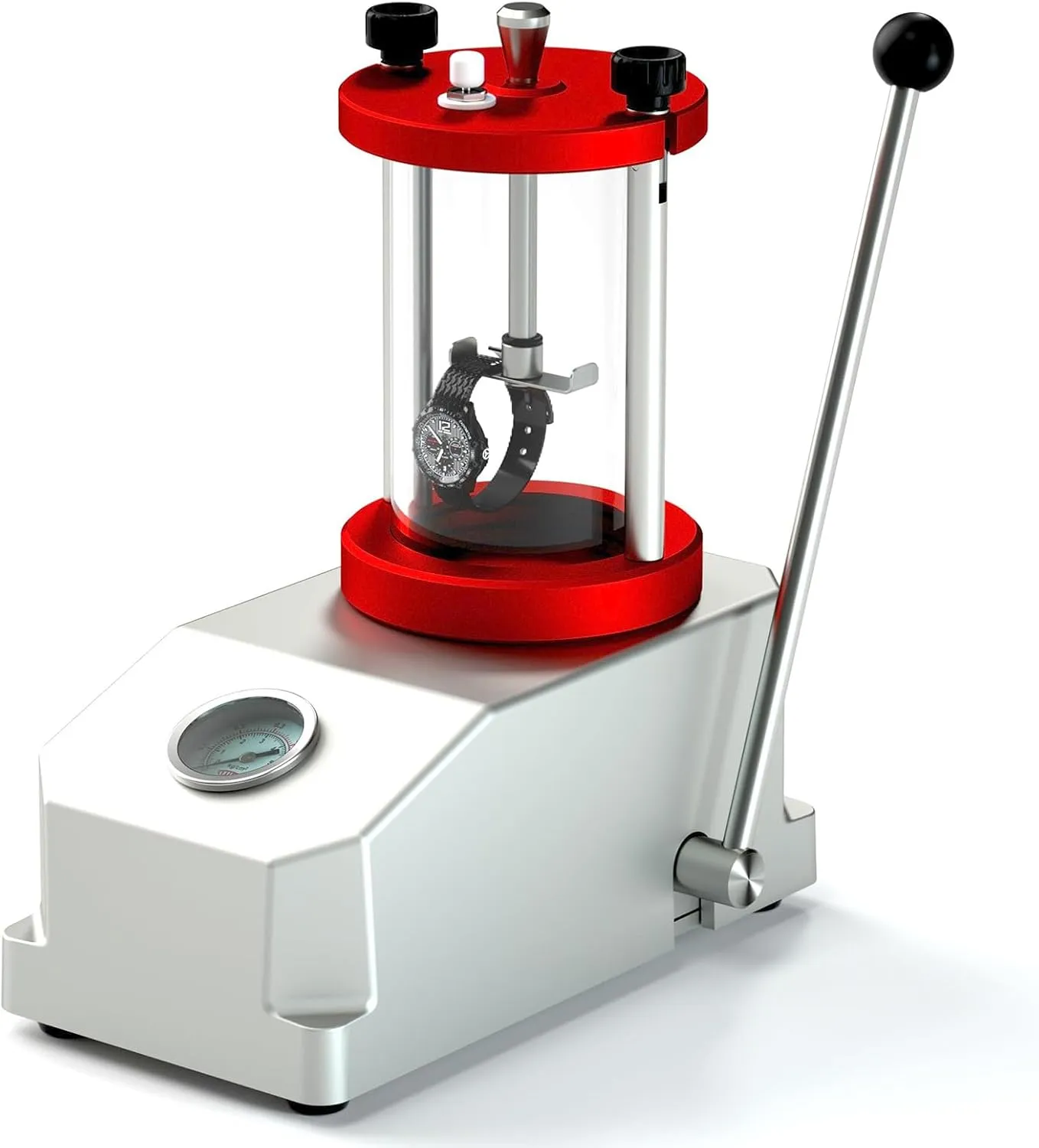

- --Watch waterproof tester is used to test the waterproof performance of the case. Its transparent cylinder makes it easy to observe which part of the watch is not waterproof. Once you find damage to the watch seal, you can simply take out the watch to correct the seal
- --If the pressure drops, check the watch for bubbles. If there are bubbles, it means that the watch seal is not suitable. Quickly pull the rod and take out the watch. There are no bubbles, and the watch seals well
- --By pressurizing the sealed tank, the condition of the product can be simulated to tens of meters underwater. The pressure difference inside and outside the product is generated after the pressure relief of the sealed box, and bubbles can be seen when leaking
- --Watch stress testing device Efficiently test the water resistance of your watch using a solid water resistance tester suitable for watches in your home or business
Product Description
Instructions for use
1. Pull the watch stem out as far as possible
2. Loosen the two screws and take out the cover
3. Bring people's water to the designated bucket red line;
4 Hang the watch on the hanging rod
5 Install the upper cover and tighten the screws;
6. Shake the pressure lever to allow the air pressure to reach 3 air pressures (Wait three minutes to allow air to enter the entire watch)
7. Press the watch stem to immerse the watch in water, and press the exhaust button to expel the air.
8. When the pressure drops, observe whether there are bubbles on the watch. If there are bubbles, the watch is not tightly sealed. Quickly pull the hanging lever to remove the watch. No bubbles appear and the watch is well sealed.
Specification:
Product name: Watch waterproof tester
Air pressure test range: 0.1-6.0kg (about 0.6Mpa)
Product test diameter: 65mm
Product test height: 72mm
Cylinder pressure: 10Kg (about 1Mpa)
Cylinder outer diameter: 80mm
Cylinder inner diameter: 65mm
Cylinder height: 138mm
Packaging size: 290mm180mm=350mm
Product weight: 3.3kg
