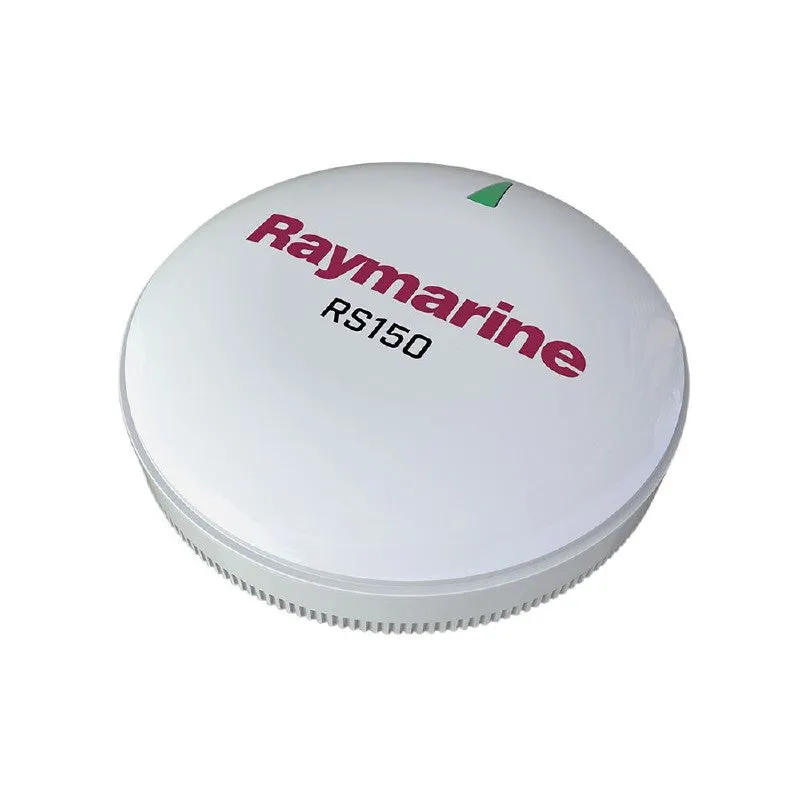

The RS150 GPS is a high performance, 72 ~channel, remotely mounted GPS
sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position
updates and enhanced accuracy.
The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features
72 ~channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS ~compatible. Space ~Based Augmentation System SBAS enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA 1 LEN
SeaTalkng and NMEA2000 compatible using a device net adapter cable
Designed for low profile surface mounting or optional pole mounting

Specifications
Nominal supply voltage 12V D.C. Powered by N2K bus
Operating voltage range 8 ~ 32V DC
Power consumption 30 mA max NMEA LEN = 1
Operating temperature ~13º F to 131º F ~25º C to 55º C
Relative humidity max 93percent
Waterproof IPx6/7
Supported connection protocols SeaTalkng: NMEA 2000 certified via DeviceNet adaptor
Sensitivity High sensitivity ~ acquisition down to ~163dBm
No. of channels 72
Positioning System GPS and GLONASS
Satellite Differential Type WAAS United States; EGNOS Europe; MSAS Japan; GAGAN India
Differential acquisition Automatic
Position accuracy 95percent 15m
Position accuracy with SDGPS 95percent 5m
Speed accuracy 95percent 0.3kt
Time to first fix from cold start 2 minutes 45 seconds typical
Time to first fix from hot start 8 seconds ~72 hour hold up battery allows for hot start
Geodetic Datum WGS84
Mounting Surface/rail/pole
