- Package Content: Switch*5; Latching: Press the button--ON, Press the button again--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles

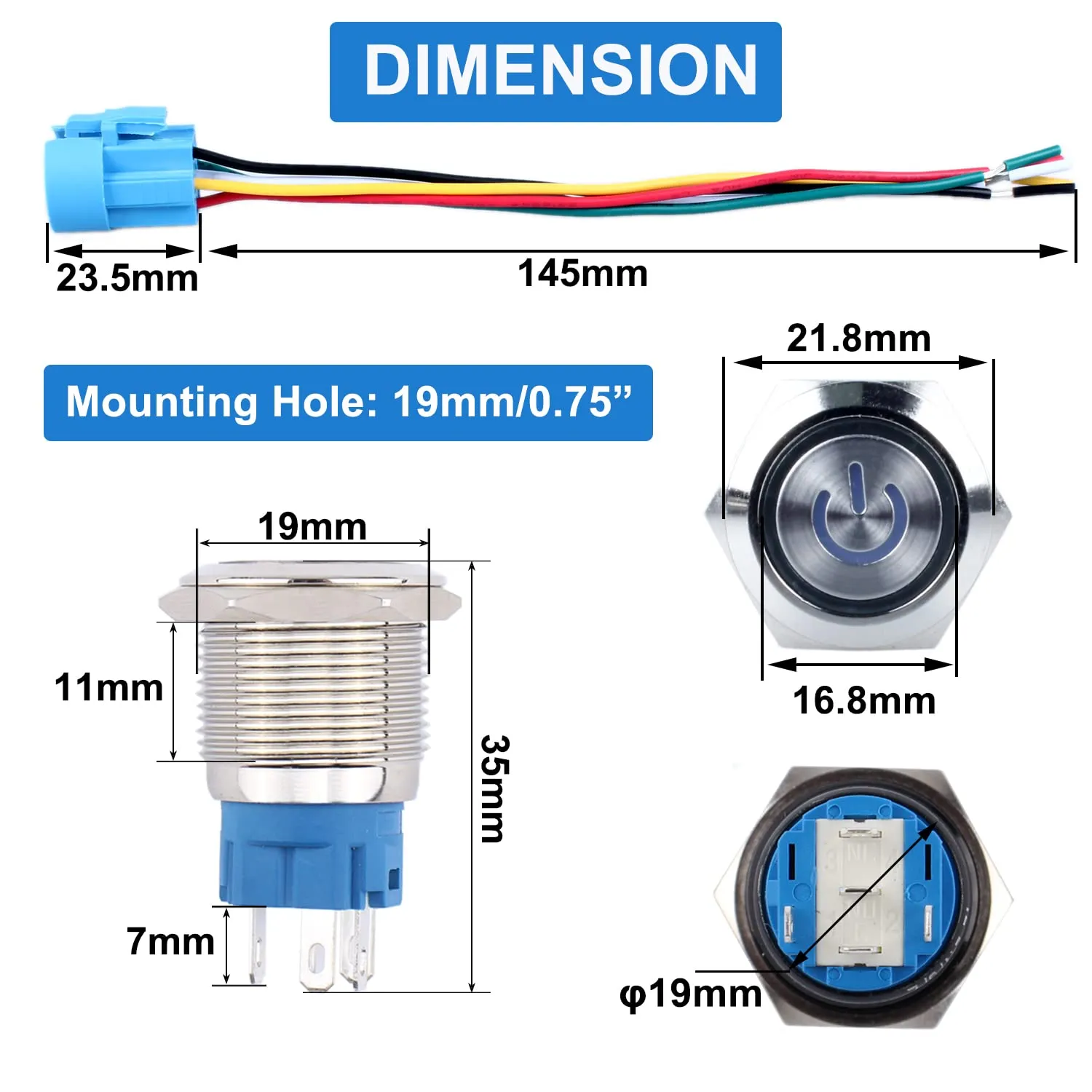

- Mounting Hole: 19mm(3/4"); Structure: 1NO 1NC; LED Light: 5A, 12-24V, Symbol Power Blue; LED life: 40,000 hours

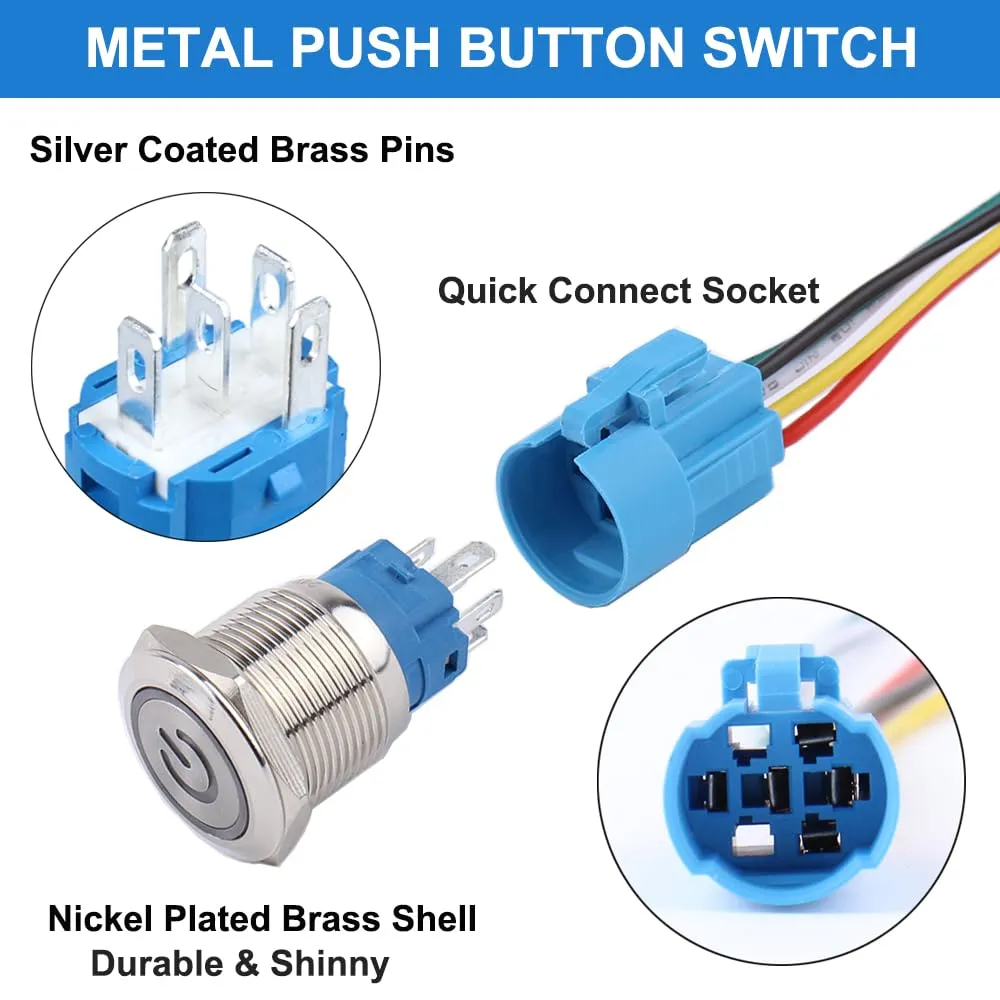

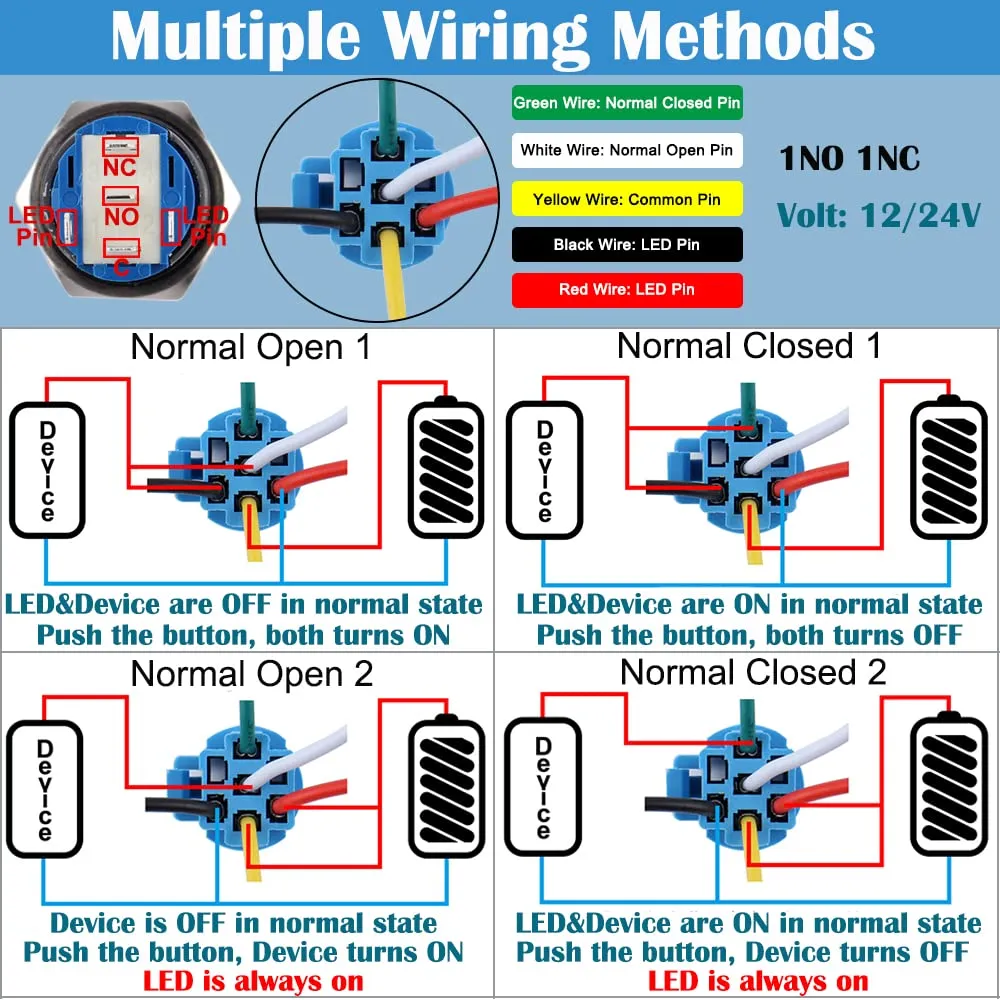

- 4 wiring methods: Normal Open or Normal Closed; LED light can be always on, or illuminates when the device is working; 5 brass terminals are easy for connecting or soldering

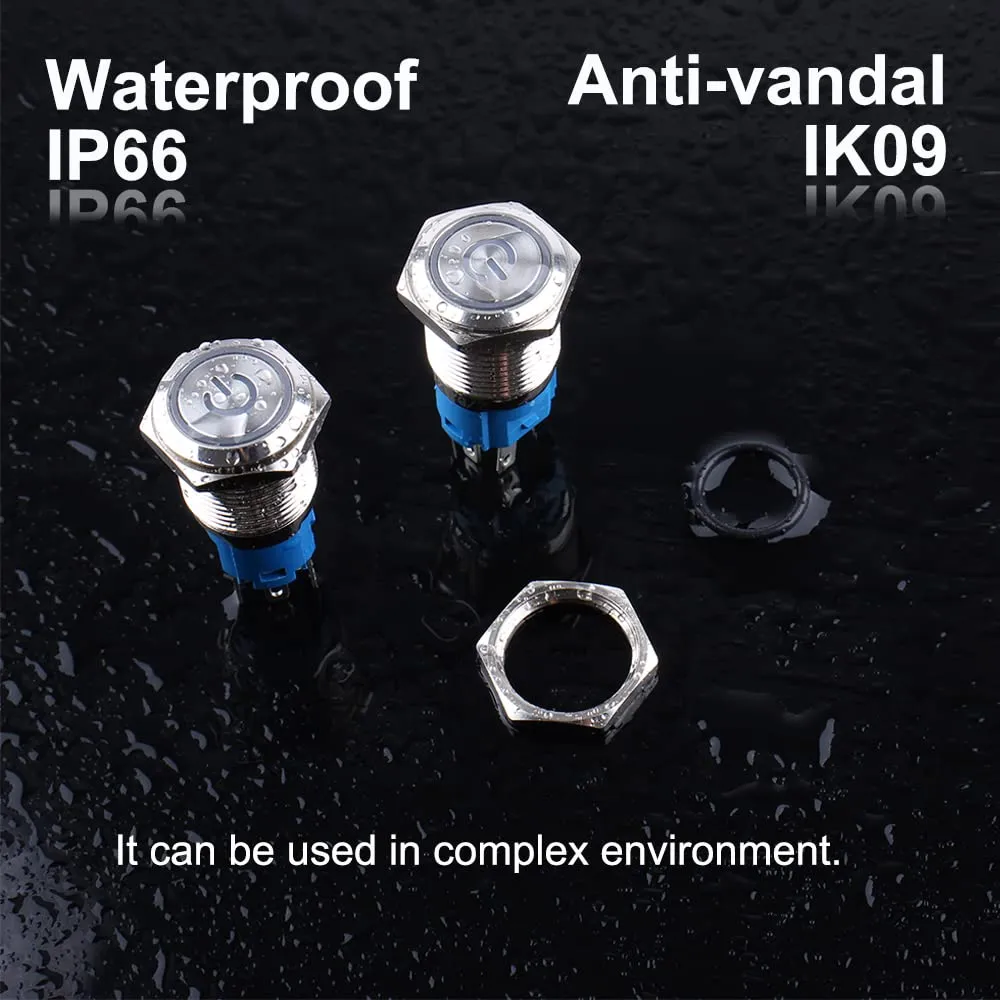

- Protection Degree: IP66 Waterproof and dustproof; IK09 Anti-vandal rate. The switch can be used in wet or dusty environment but don’t immerse it in water
- Wide Applications: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
